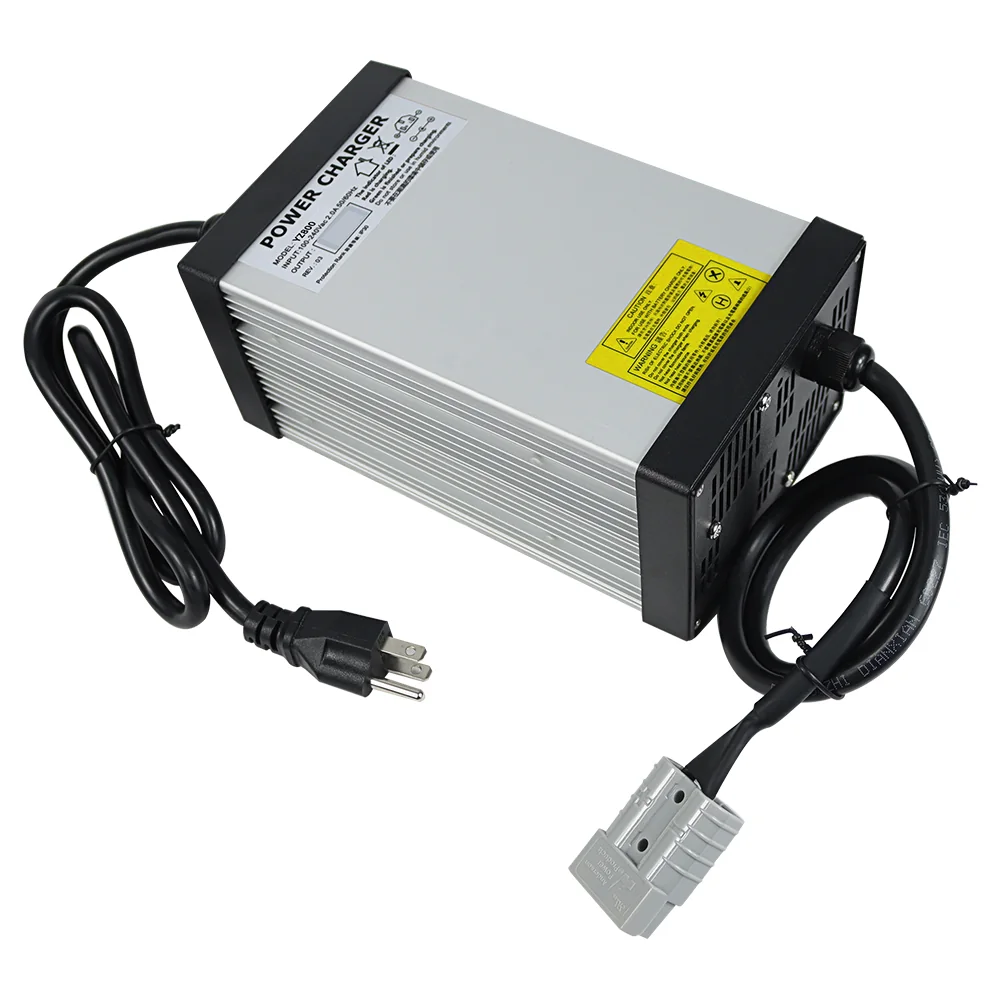

84V Electric Scooter 96.6V 8A Battery Charger
A 772.8W charger for 84V (23S) packs: 96.6V at 8A, for high-voltage e-scooters and light electric vehicles.
| Input Voltage | 100-240V AC |
|---|---|
| Output | 96.6V 8A |
A high-power 772.8W 96.6V 8A smart charger specifically engineered for 84V nominal (23S) lithium-ion battery packs (84.0V nominal, 96.6V full charge) — commonly used in high-performance electric scooters, high-speed e-mopeds, and light electric vehicles. Built on the heavy-duty YZ800S platform with active PFC, real-time LED voltage display, dual active cooling fans, and robust output connector options (e.g., Anderson 50A / XT90 / GX16-3P). Manufactured in our own 3,000 m² factory in Shenzhen since 2011.
Key Specifications
Model / Battery · YZ800S series · 84V (23S) Lithium-ion battery packs (84.0V nominal)
Output · 96.6 V DC / 8 A (772.8 W) · CC/CV charging profile · charging finish voltage 96.4–96.8 V (23 series cells @ 4.2V)
Output Tolerance · 8 A rated · 7.7 A min / 8.3 A max · constant-current holds 8 A from 69 V DC up to 94.3 V DC
Input · 100–240 V AC, 50/60 Hz rated (47–63 Hz range), 10.0 A max · detachable mains cord
Efficiency · >88%
Display / Monitoring · Real-time digital LED voltage display on the case — tracks charge progress continuously
Power Factor · Active PFC (Power Factor Correction, >0.95)
Protections · OVP · OCP · SCP · OTP · Overload protection · Automatic overcharge cut-off
Housing & Cooling · Built-in dual high-speed active cooling fans · fireproof ABS+PC housing · IP20 indoor use
Output Connector · Heavy-duty Anderson 50A / XT90 / GX16-3P standard (custom pin assignment available)
Dimensions / Weight · approx. 230 × 135 × 70 mm · approx. 1.8 kg
Certifications · CE (LVD + EMC) · UKCA · RoHS 2.0 compliant
MOQ / Lead Time / Warranty · 1 unit sample / 10 units bulk · 10–15 working days · 1 year warranty
Important Order Notice:
Battery Series Check: Verify that your battery pack is a 23S lithium-ion chemistry (84.0V nominal / 96.6V full charge). A 20S 72V pack charges at 84.0V; a 24S pack charges at 100.8V. Always match the series count (23S) rather than the trade label.
Connector & Pinout: Because this unit delivers 8A at high voltage (96.6V), ensure your charging plug/socket (e.g., Anderson 50A, XT90, or GX16) can comfortably handle continuous 8A loads.
