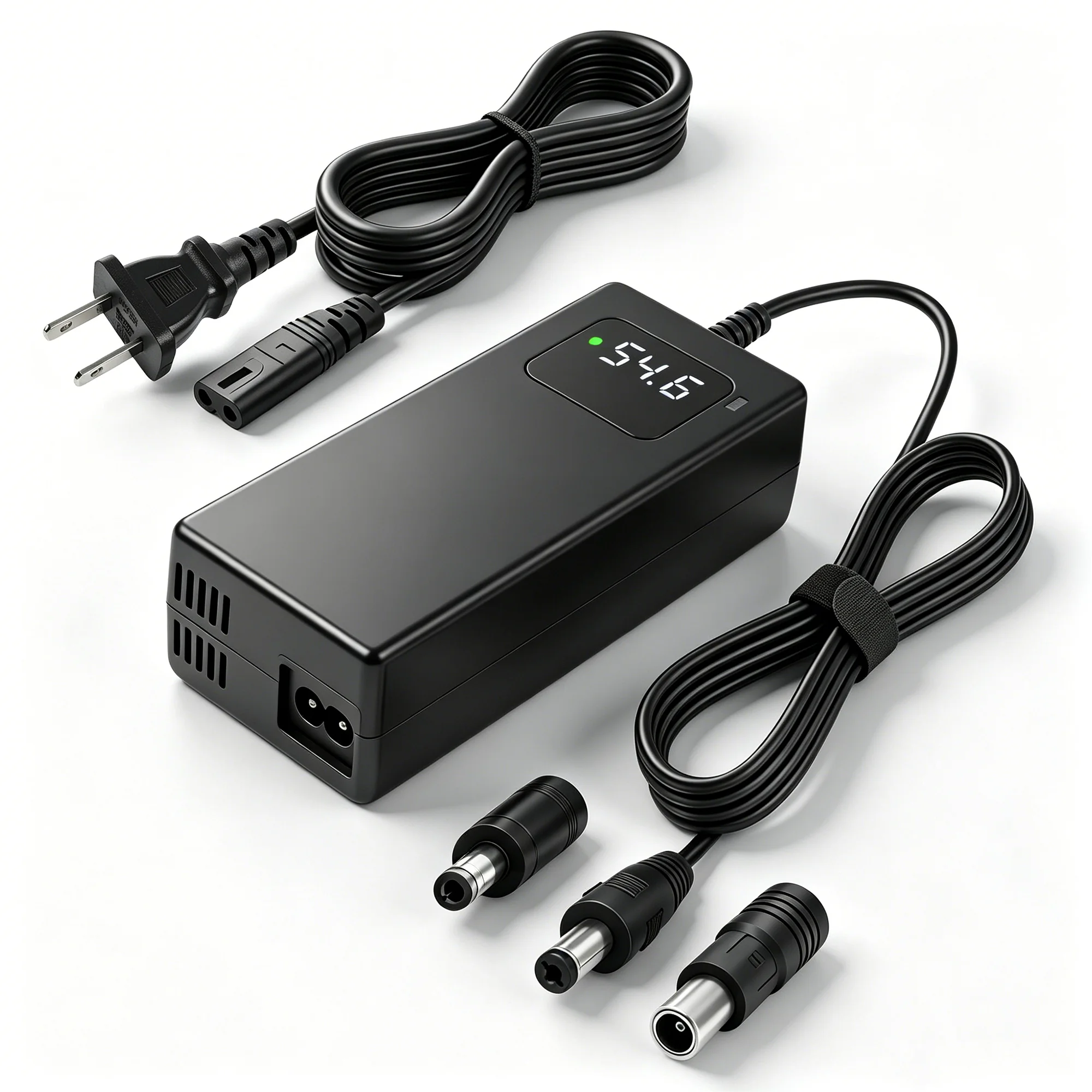

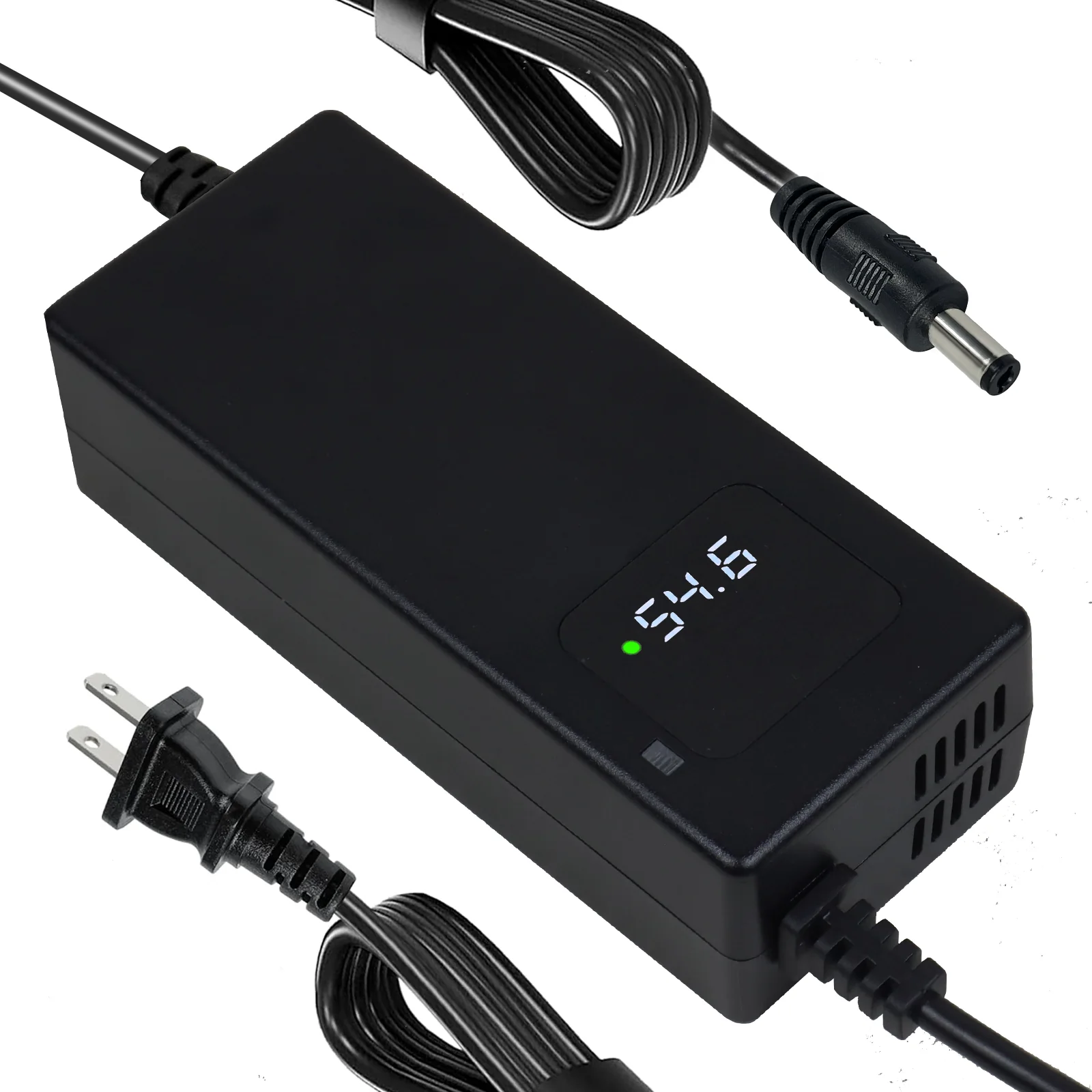

48V Electric Scooter 54.6V 2A Battery Charger

The same YZ100 platform wired for 48V: 54.6V at 2A into 13S packs in storage and backup systems. 84W, CC/CV charging.

Technical specifications
Input Voltage100-240V AC
Output54.6V 2A
Efficiency>88%
ProtectionOVP/OCP/SCP/OTP

Overview

The same YZ100 platform wired for 48V: 54.6V at 2A, 84W, charging 48V (13S) lithium packs in storage and backup systems.

Which packs this charger suits

13S lithium-ion: 13 cells at 4.2V gives 54.6V, the pack sold as 48V (48.1V nominal).

A 48V lead-acid pack needs 57.6-58.8V and a 16S LiFePO4 pack 58.4V, so neither matches this output.

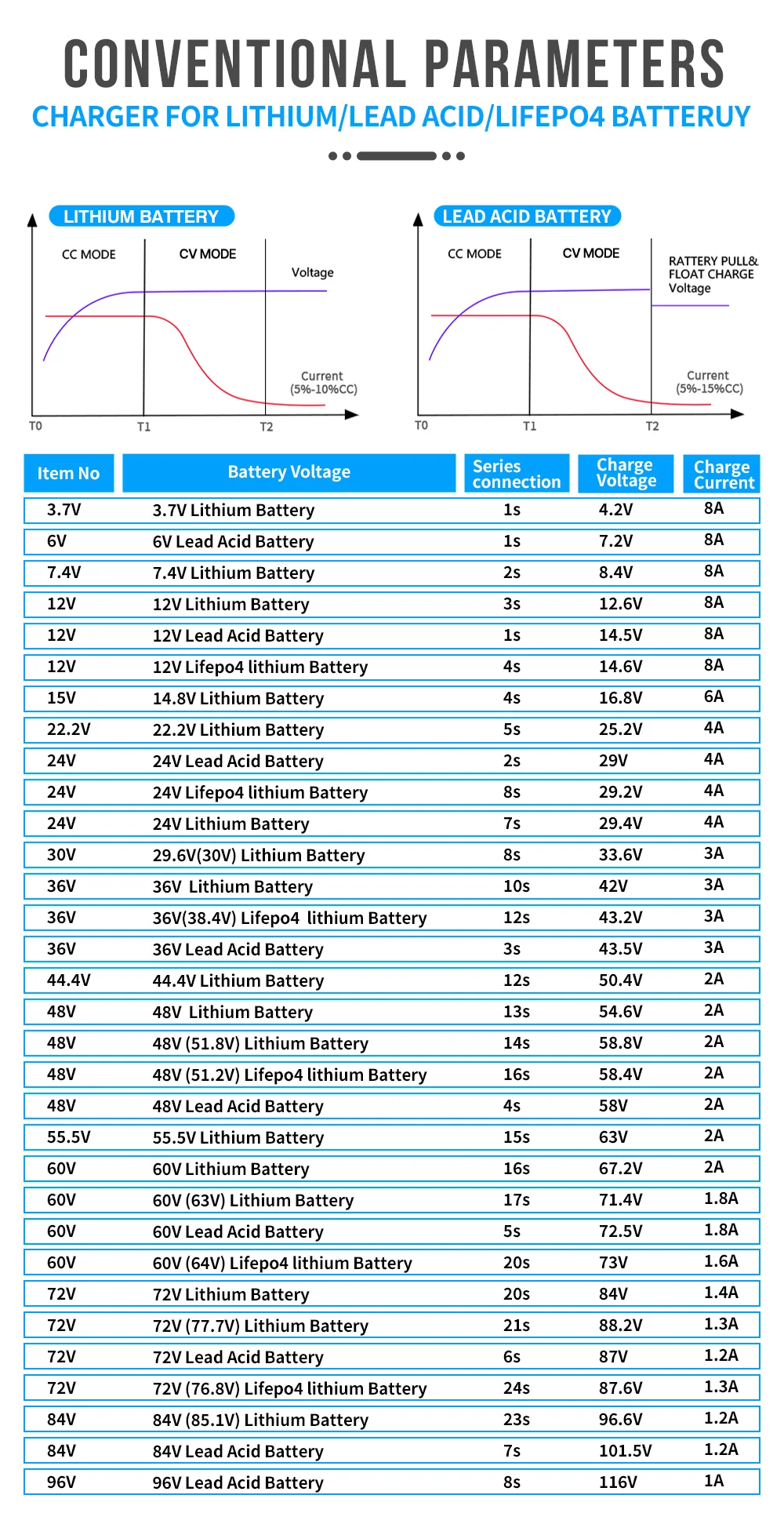

Specifications

48V Electric Scooter 54.6V 2A Battery Charger - detail view 1

Model Comparison

The YZ100 wired for 48V: 54.6V / 2A into 48V lithium packs. Its 24V sibling runs 29.4V.

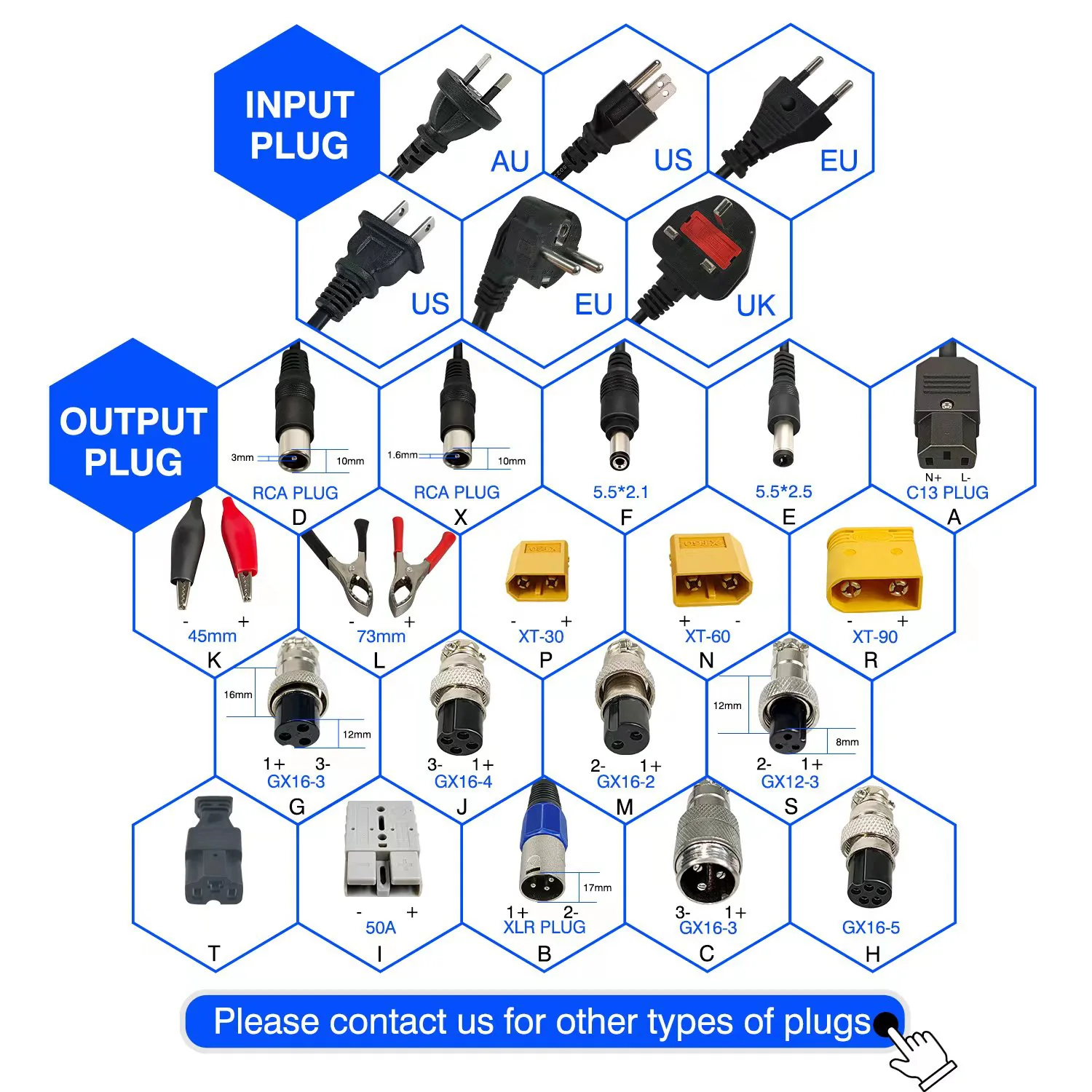

Connectors and plugs

48V Electric Scooter 54.6V 2A Battery Charger - detail view 248V Electric Scooter 54.6V 2A Battery Charger - detail view 348V Electric Scooter 54.6V 2A Battery Charger - detail view 454.6V 2A Lithium Battery Charger54.6V 2A Lithium Battery Charger (view 2)54.6V 2A Lithium Battery Charger (view 3)
