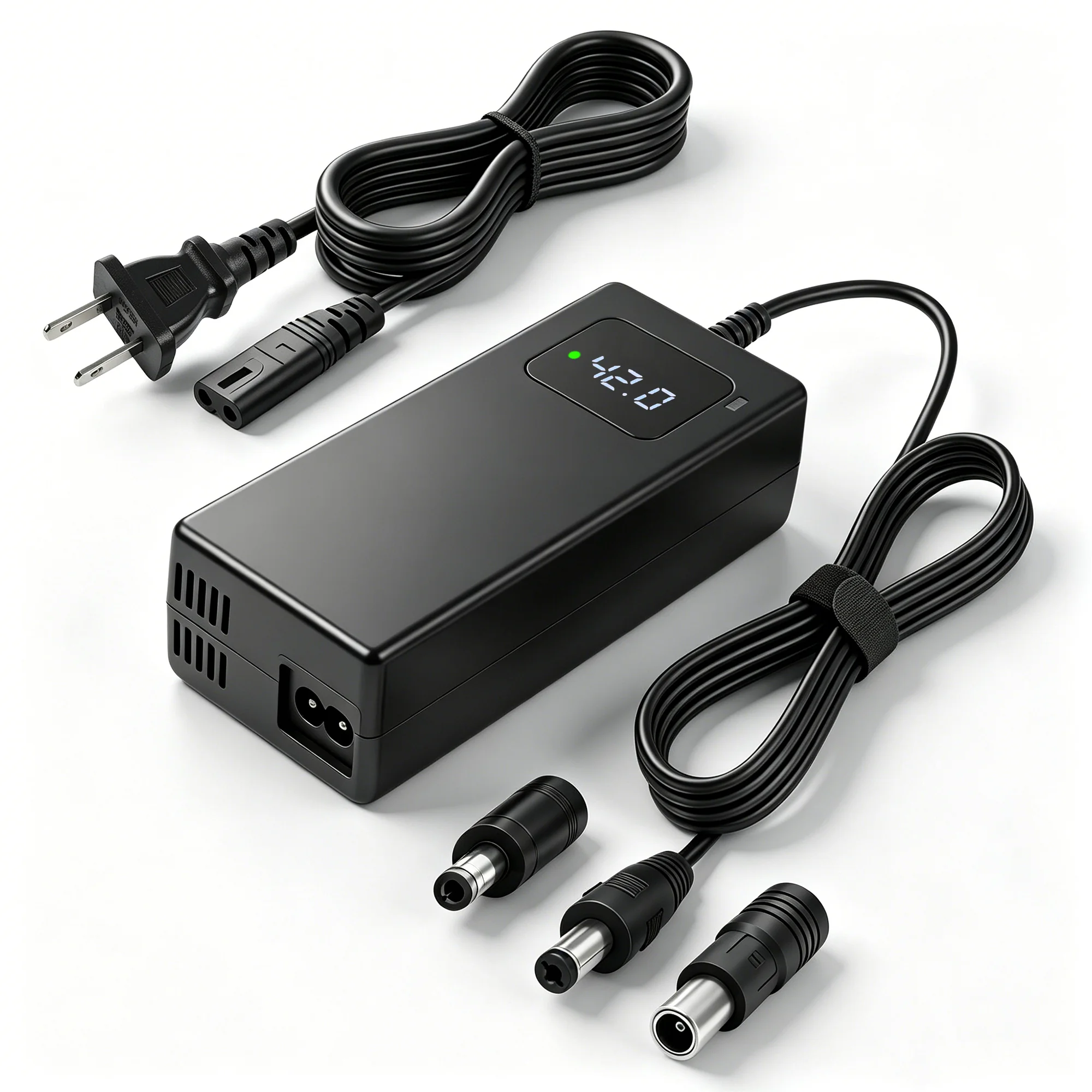

36V Electric Scooter 42V 2A Battery Charger
For 36V (10S) e-scooter packs: 42V full charge at 2A, with a voltage display so the pack level is visible before you unplug. 100-240V AC input, active PFC.
| Input Voltage | 100-240V AC |
|---|---|
| Output | 42V 2A |
| Efficiency | >88% |
| Protection | OVP/OCP/SCP/OTP |
Compact 42V 2A charger for 36V (10S) lithium-ion packs — 100–240V AC, >88% efficiency, CC/CV, voltage display, PFC, OVP/OCP/SCP/OTP, CE/RoHS/SAA. Made in Shenzhen since 2011.
Key specifications
Model / battery · YZ100 · 36V (10S) lithium-ion
Output · 42 V DC / 2 A (84 W) · CC/CV profile
Input · 100–240 V AC, 50/60 Hz, 2.0 A · appliance inlet (detachable mains cord)
Efficiency · >88%
Protection · OVP · OCP · SCP · OTP | red LED = charging, green = complete
Cooling / enclosure · High-speed fan + aluminium heat sink shell · fireproof housing · Class II · IP20 (indoor, not water-resistant)
Size / weight · approx. 135 × 56 × 46 mm · 0.5 kg
Operating ambient · up to 25 °C (rated maximum)
Certification · CE (LVD) · RoHS 2.0 · SAA — numbers below
MOQ / lead time / warranty · 1 unit · 10-15 working days · 1 year
Full technical data sheet — complete specification, certification references, all connector and plug options, custom build scope, ordering terms. 2 pages, PDF.
Connector, plug and custom build options
Output connector · DC 5.5×2.1 mm standard; also 5.5×2.5, RCA, 3-pin XLR, GX16 / GX12, XT30 / XT60 / XT90, Anderson-style, alligator clips — or a connector to your drawing
Input plug · US · EU · UK · AU
Output voltage · 3.7–96 V (1–23 series, or more on request). The CE attestation covers 12.0–58.8 VDC; builds outside that band are quoted separately and may need separate approval for your market.
Label · cable length · packaging · manual · Produced to your specification
Since 2011 — 15 years building chargers
3,000 m² — own factory in Shenzhen
150,000+ — units produced every month
55+ — export markets served
Why this charger lasts
In CC mode the charger pushes a steady 2A into the pack until it reaches 42V, then switches to CV mode and holds 42V while the current tapers to about 5–10%. That taper is what stops the pack being overcharged — the difference between a battery that lasts its rated life and one that comes back as a warranty claim.
Active cooling
A high-speed fan moves air across the power stage, and the shell itself is an aluminium heat sink. Heat is the biggest killer of charger lifetime.
Fireproof housing
The enclosure uses fireproof material, so a fault inside the power stage stays inside it.
Four protection layers
OVP, OCP, SCP and OTP. Charging stops on a fault and resumes automatically once it clears.
See the CC/CV charging curves and the full 3.7–96V platform matrix
CC/CV charging curves for lithium and lead-acid packs — and the conventional-parameter matrix from 3.7 V to 96 V — are on page 2 of the technical data sheet.
This 42V build is one configuration of a platform we build from 1 series (3.7V) to 23 series (96V) and beyond, for lithium, LiFePO4 and lead-acid packs. Not sure which build fits your pack? Ask us.
Certifications and how we build
CE — LVD 2014/35/EU · TÜV SÜD attestation N8A 134063 0002 Rev. 00 (test report 68.210.25.1077.01) · EN 60335-1:2012/A16:2023, EN 60335-2-29:2021/A11:2024, EN 62233:2008
RoHS 2.0 · Test report CRT250623R001 · Directive 2011/65/EU as amended by 2015/863/EU
SAA · Certificate GMA-512250-EA · AS/NZS 60335.1:2020, AS/NZS 60335.2.29:2017 · valid to 15 Apr 2027
Own SMT lines, assembly zones, aging chambers and IQC / IPQC / OQC checkpoints sit under one roof; every unit gets a 24–48 hour full-load burn-in, and your order runs through three inspections before we photograph it and dispatch. Certificate copies are available for your technical file.
Frequently asked questions
Are you a factory or a trading company?
We are a manufacturer, building chargers in Shenzhen since 2011. Our 3,000 m² facility has its own SMT lines, assembly zones, aging chambers and QC stations, with a monthly capacity of 150,000+ units. We welcome factory visits and third-party inspections.
What battery does this charger suit?
A 36V (10S) lithium-ion pack. 42V is the full-charge voltage of 10 series lithium cells at 4.2V each, so a 42V 2A charger is the correct match for a 36V lithium e-scooter or e-bike battery — electric scooters, e-bikes, hoverboards and personal mobility devices.
Can it charge a 36V lead-acid or LiFePO4 battery?
Not with this 42V build — a 36V lead-acid pack (3S) charges at 43.5V and a 36V LiFePO4 pack (12S) at 43.2V. We build both versions on the same platform; tell us your battery type and we will quote the right output voltage.
