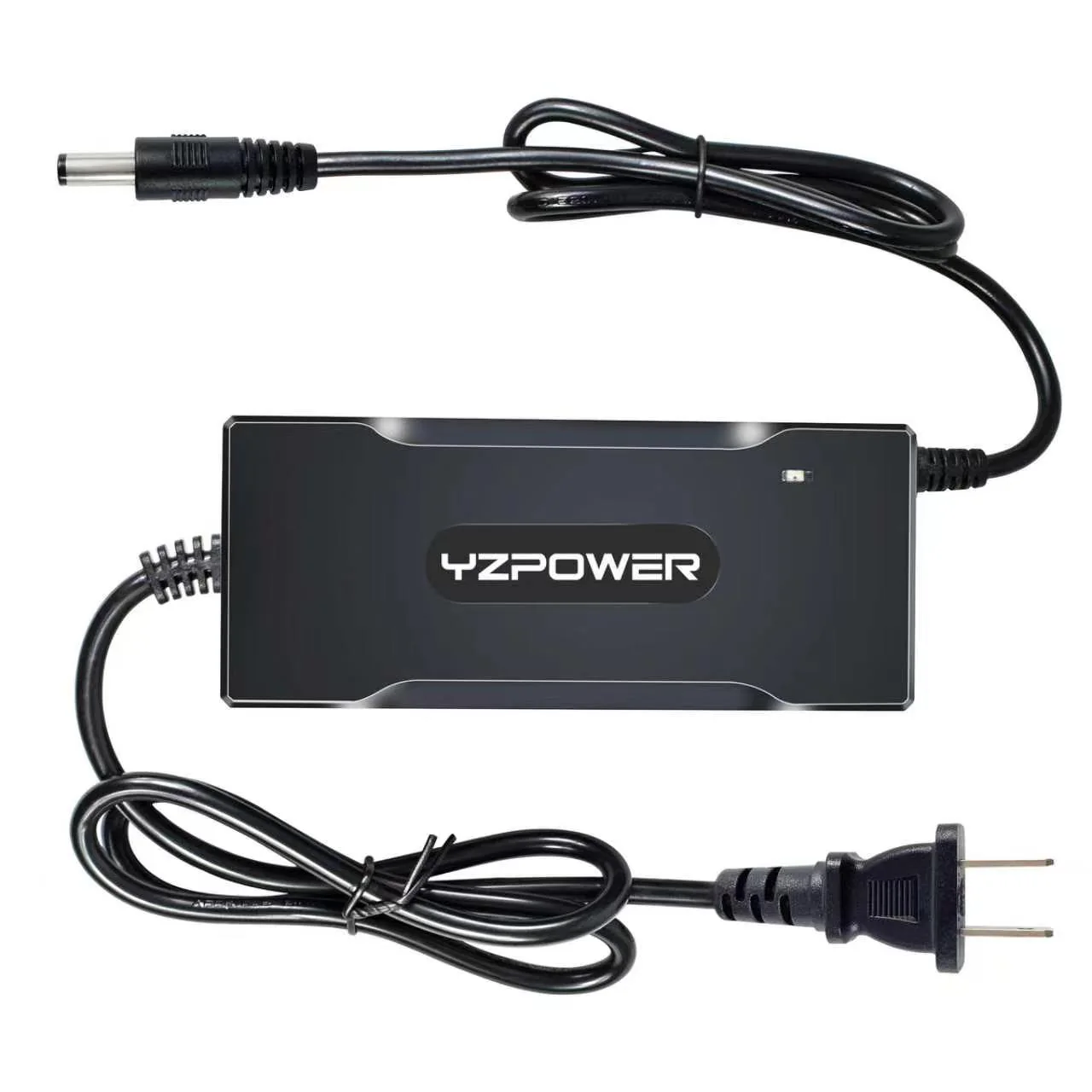

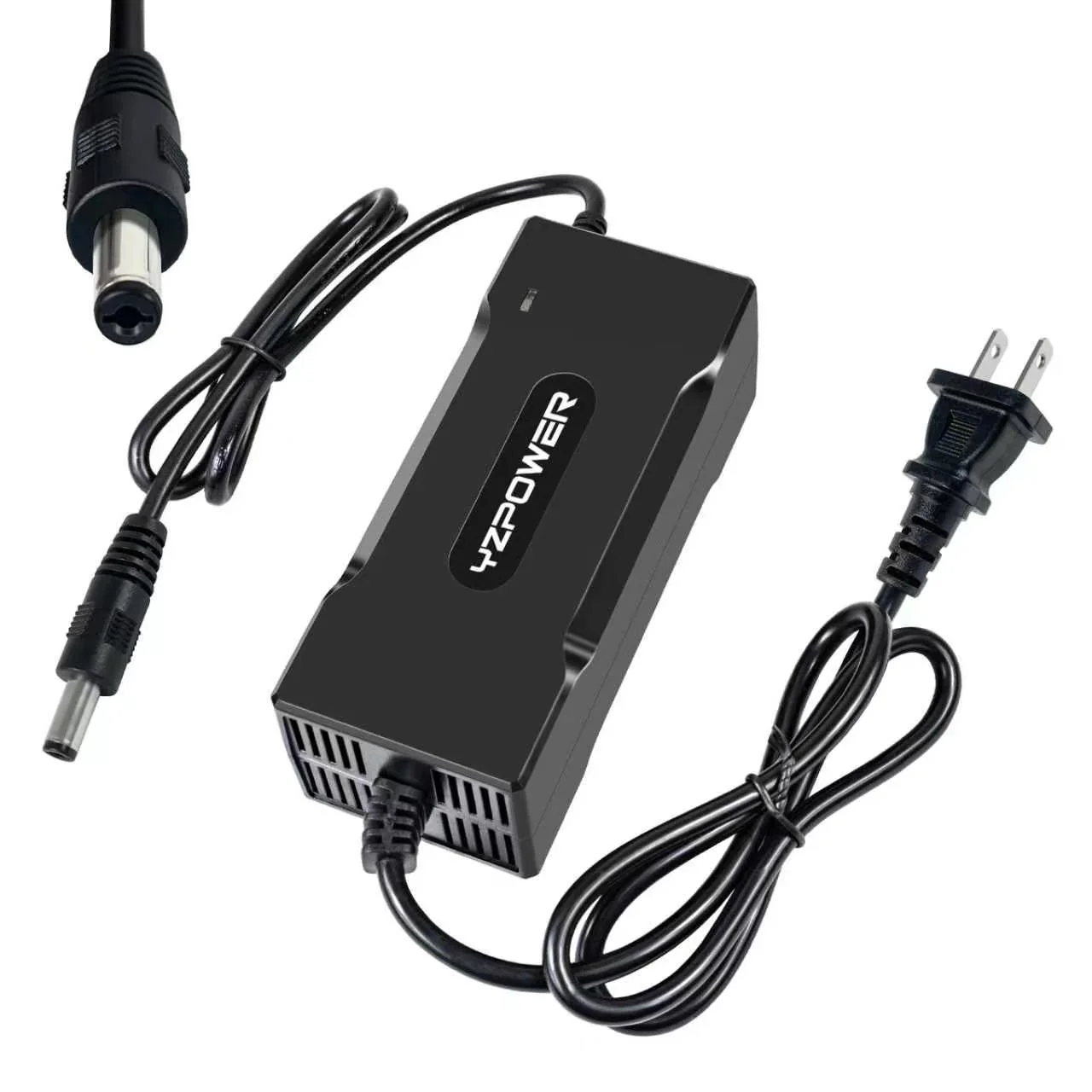

36V E-Bike Scooter 42V 2A Smart Charger
The XM19520S: 42.0V at 2A (84W) with 100-240V global input, for 36V (10S) e-scooter packs.
| Input Voltage | 100-240V AC |
|---|---|
| Output | 42V 2A |
| Efficiency | >88% |
| Protection | OVP/OCP/SCP/OTP |
Technical specifications
Model: XM19520S
Input Voltage: AC 100–240V ~ 50/60Hz (Global Universal)
Output Voltage: DC 42.0V (±0.2V)
Output Current: 2.0A Max (84W)
Charging Mode: Smart 3-Stage CC/CV (Constant Current / Constant Voltage)
Applicable Battery: 36V Lithium-ion / Li-ion / Polymer Battery Pack (10-Series)
Charging Efficiency: ≥85%
Operating Temperature: -10°C to +40°C
Enclosure Material: Fireproof ABS + PC (UL94 V-0 Rated)
Net Weight: approx. 220g / 0.48 lbs
Dimensions: 135 × 56 × 33 mm
🛡️ Safety & Protection Features (安全防护)
Over-Voltage Protection (OVP): Prevents voltage spikes from damaging the battery.
Over-Current Protection (OCP): Limits current flow to safe charging levels.
Short-Circuit Protection (SCP): Automatically cuts off output in case of short circuits.
Reverse Polarity Protection: Prevents sparks or damage if connected incorrectly.
Auto Shut-Off: Halts power delivery once the battery reaches 100% capacity.
💡 LED Status Indicator
🔴 Solid Red: Charging active
🟢 Solid Green: Standby / Battery fully charged / Auto cut-off
⚠️ Flashing Red: Protection triggered (Voltage mismatch / Short circuit)
Plug & Cable Specifications
AC Input Plug: US / EU / UK / AU standard (Detachable)
DC Output Plug Options:
DC 5.5×2.1mm / 5.5×2.5mm
3-Pin GX16 Aviation Plug (Pin 1+, Pin 3-)
3-Pin XLR / RCA Connector
DC Cable Length: 1.0 m (3.3 ft)
AC Cable Length: 1.2 m (3.9 ft) ##Frequently Asked Questions (FAQ)
Q1: Why does a "36V battery" need a "42V charger"?
A: "36V" refers to the nominal (average) voltage of a 10-series (10S) lithium battery. When fully charged, each cell reaches 4.2V, making the max charging cutoff voltage exactly 42.0V (10 × 4.2V).
Q2: Is this charger compatible with LiFePO4 or Lead-Acid batteries?
A: No. This model is strictly calibrated for 36V Standard Lithium-ion (NMC/Li-Po) batteries. For 36V LiFePO4 (43.8V cutoff) or Lead-Acid batteries, please check our specific model listings.
Q3: Why does the charger get warm during use?
A: It is normal for the charger to generate heat while converting AC to DC power. The fireproof casing is designed to dissipate heat naturally. Please keep it in a well-ventilated area and away from flammable materials during charging.
Q4: How do I know if my charger or battery is faulty?
Light stays Green when plugged into battery: The battery may be fully charged, or the battery BMS/fuse is blown, preventing charge current from entering.
Light does not turn on: The charger fuse may be damaged or the AC outlet is disconnected.
Q5: Do you support OEM / Custom Connector orders?
A: Yes! We offer custom DC connector plugs, wire lengths, laser-engraved logos, and bulk wholesale pricing for distributors and bike repair shops. Contact us for OEM inquiries.
