24V Mobility Scooter 29.4V 5A Battery Charger
7S wheelchair and mobility packs at 29.4V and 5A (147W), the higher-current option for 24V chairs.
| Input Voltage | 100-240V AC |
|---|---|
| Output | 29.4V 5A |

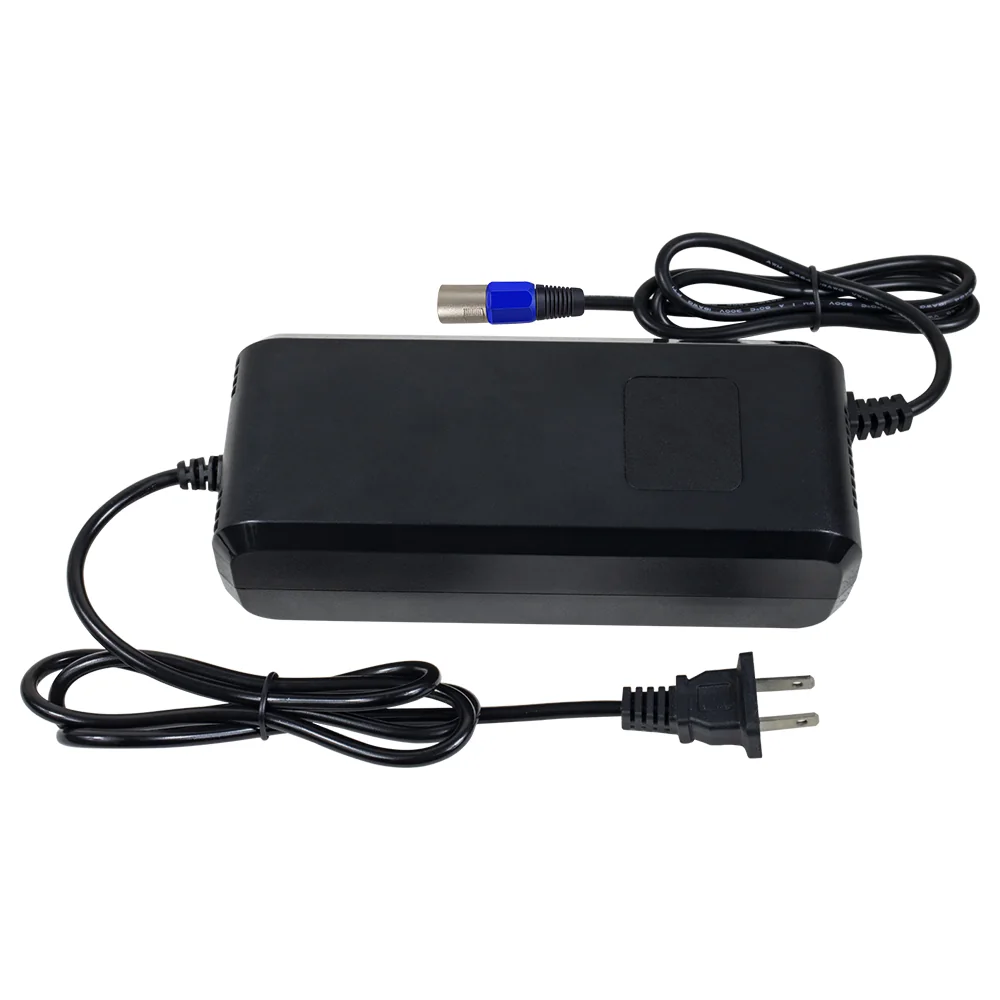

29.4V 5A Lithium Battery Charger for 24V (7S) Electric Wheelchairs & Mobility Scooters
A high-power 147W fast charger designed specifically for 24V (7S) lithium-ion battery packs (25.9V nominal, 29.4V full charge). Engineered for electric wheelchairs, heavy-duty mobility scooters, and light electric vehicles requiring rapid, safe recharging. Features active fan cooling, clear LED indicators, built-in multi-layer protection, and a standard 3-pin XLR or custom medical connector. Manufactured in our own 3,000 m² factory in Shenzhen since 2011.
Key Specifications
Model / Battery · YZ270 series · 24V (7S) lithium-ion battery packs (25.9V nominal)
Output · 29.4 V DC / 5 A (147 W) · CC/CV charging profile · charging finish voltage 29.3–29.5 V
Input · 100–240 V AC, 50/60 Hz rated (47–63 Hz range), 2.5 A max · appliance inlet (detachable mains cord)
Efficiency · >88%
Display / Indication · Dual-color LED indicator — Red = Charging, Green = Standby / Charge Complete
Protection · OVP · OCP · SCP · OTP · automatic cut-off when full, safe for overnight connection
Cooling / Enclosure · Active cooling with built-in silent fan · fireproof ABS+PC housing · IP20 (indoor use)
Output Connector · 3-pin XLR (standard for medical wheelchairs and mobility scooters) — GX16, Anderson, DC jack, and custom options available
Dimensions / Weight · approx. 150 × 75 × 50 mm · approx. 0.55 kg
Environment · -20 °C to +50 °C operating · -40 °C to +80 °C storage · 25–90% RH non-condensing
Certification · CE (LVD + EMC) · UKCA · RoHS 2.0
MOQ / Lead Time / Warranty · 1 unit · 10–15 working days · 1 year
Notice before ordering:
Battery Compatibility: Verify that your battery pack is a 7S lithium-ion chemistry (29.4V full charge / 25.9V nominal). If your wheelchair uses an 8S LiFePO4 pack, it requires a 29.2V charger; if it uses traditional 24V lead-acid/gel batteries, it requires a multi-stage lead-acid charger.
Connector Configuration: Confirm your device's charge port connector type and pinout (standard configuration: 3-pin XLR, Pin 1+, Pin 2-).
