What are the input and output specifications?

Input: 100-240V AC. Output: 14.6V 50A.

What protection features does this charger include?

It includes OVP/OCP/SCP/OTP protection.

12V Marine RV 14.6V 50A LiFePO4 Charger

50A into 12V (4S) packs at 14.6V, with dual cooling fans and a 50A Anderson output. It will bring a fully discharged 0V pack back up, which most bench charge...

Technical specifications
Input Voltage	100-240V AC
Output	14.6V 50A
Efficiency	>88%
Protection	OVP/OCP/SCP/OTP

14.6V 50A LiFePO4 battery charger for 12V (4S) lithium packs — 2-stage CC/CV charging, dual cooling fans, LED voltage display and a 50A Anderson output. It will bring a fully discharged (0V) pack back to life. Built in our own 3,000 m² factory in Shenzhen since 2011.

Key specifications
Model / battery · YZ950 · 12V (4S) LiFePO4 / Li-ion pack, 12.8V nominal

Output · 14.6 V DC / 50 A (730 W) · 2-stage CC/CV profile

Input · 100-240 V AC, 50/60 Hz · appliance inlet (detachable mains cord)

Efficiency · >88%

Charging profile · 2-stage intelligent charging (constant current, then constant voltage), microcontroller-controlled

BMS activation · Activates the BMS and starts charging a fully discharged (0V) pack

Display · LED voltage display on the side of the case — shows the pack voltage during charge

Cooling · Dual built-in cooling fans · all-aluminium shell

Protection · OVP · OCP · OPP · SCP · OTP · reverse-connection protection with reset button

Output connection · 50 A Anderson connector · 80 A Anderson plugs and M8 terminal adapter cable supplied

Size / weight · approx. 254 × 152 × 66 mm · 2 kg

MOQ / lead time / warranty · 1 unit · 10-15 working days · 1 year

Check two things before you order: this is a LiFePO4 / Li-ion charger — the 2-stage CC/CV profile is not a lead-acid profile, so it is not for 12V AGM, GEL or flooded batteries. And the output is a 50 A Anderson connector, so compare it against your pack's terminals; the M8 adapter cable in the box covers most 12V lithium deep-cycle packs.

Full technical data sheet — complete electrical specification, protection and BMS behaviour, connectors and what is in the box, the standard 12V/24V/48V LiFePO4 voltage table and ordering terms. 2 pages, PDF.

Connector and what is in the box
Output connector · 50 A Anderson (standard). 80 A Anderson plugs and an M8 terminal adapter cable are supplied so the charger bolts straight onto the M8 terminals of most 12V lithium deep-cycle packs. Other high-current terminations — M8 ring lugs, heavy-duty clips, or a connector to your drawing — on request

Input plug · US · EU · UK · AU

Label · cable length · packaging · manual · Produced to your specification

Since 2011 · 15 years building chargers

3,000 m² · own factory in Shenzhen

150,000+ · units produced every month

55+ · export markets served

Why this charger lasts
In CC mode the charger pushes a steady 50A into the pack until it reaches 14.6V, then switches to CV mode and holds that voltage while the current tapers off, so a flat pack is not shocked back to life but brought up in two controlled stages. An LED voltmeter on the side shows the pack voltage as it climbs.

Dual cooling fans

Two fans plus an aluminium shell mean the unit can sit at 50A for hours without cooking itself, which is what a large deep-cycle pack needs.

All-aluminium shell

The case is aluminium, not plated steel: sturdy, and it will not rust in a marine or RV installation.

0V wake-up

A lithium pack that has been sitting discharged is often rejected by ordinary chargers. This one activates the BMS and starts charging from 0V.

LED voltage display

The voltmeter on the side of the case shows the pack voltage as it climbs, so the user can see charge state instead of guessing from a light.

Five protections plus a reset button

OVP, OCP, OPP, SCP and OTP, plus reverse-connection protection with a built-in reset button, so a mistaken hook-up does not end the charger.

1-year warranty. We build it, so we can stand behind it.

Certification and how we build
Certification: this model is not yet certified to a national scheme. YZPOWER is an OEM/ODM manufacturer, so certification is normally handled with the order — tell us the market you sell into and we will manage the application for that market (CE (LVD) and RoHS for the EU, UKCA for the UK, CB (IECEE) as the basis for national approvals, SAA / RCM for Australia, ETL / UL for North America) and quote it alongside the charger.

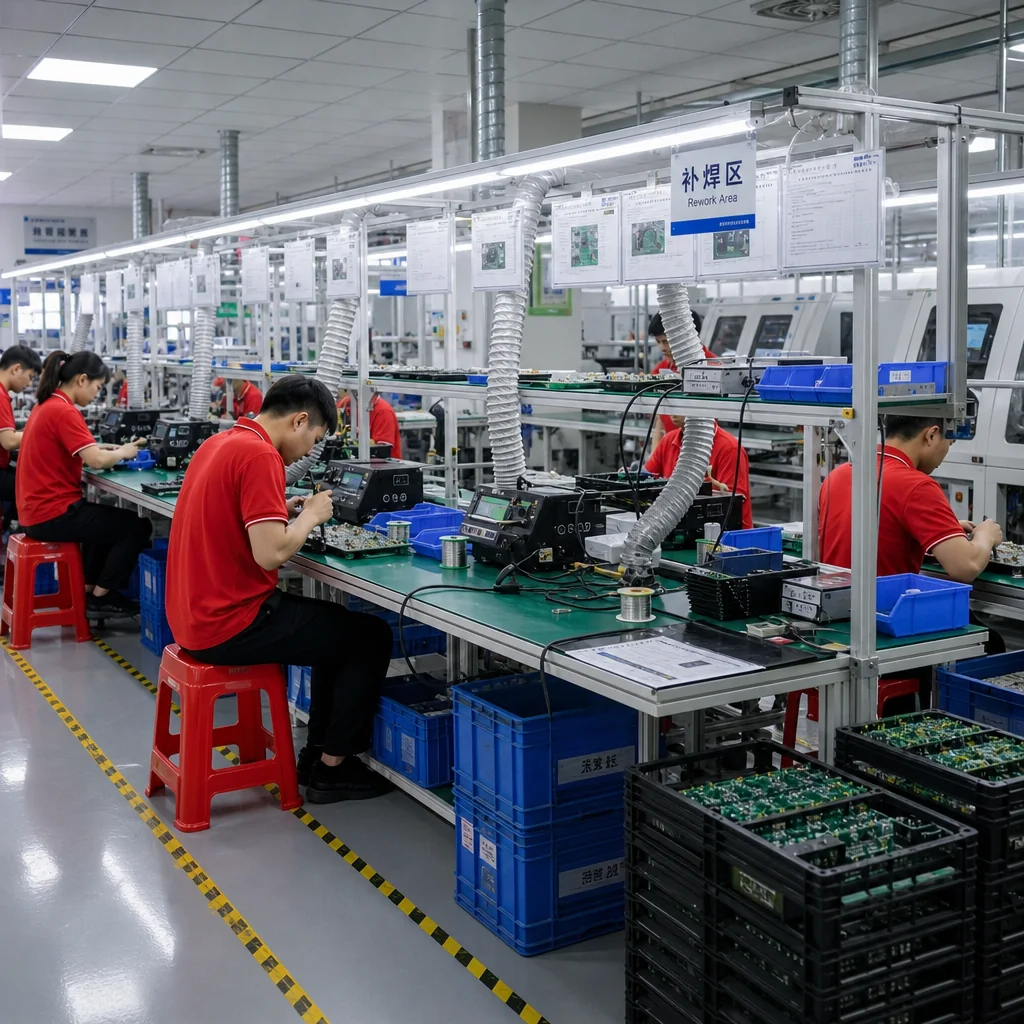

Own SMT lines, assembly zones, aging chambers and IQC / IPQC / OQC checkpoints sit under one roof; every unit gets a full-load burn-in, and your order runs through three inspections before we photograph it and dispatch.

12V Marine RV 14.6V 50A LiFePO4 Charger - detail view 1

Frequently asked questions
Are you a factory or a trading company?

We are a manufacturer. YZPOWER has designed, assembled and tested battery chargers in our own 3,000 m² factory in Shenzhen since 2011 — SMT lines, assembly zones, aging chambers and quality control all under one roof. OEM and ODM builds are welcome.

What battery does this charger suit?

A 12V LiFePO4 or Li-ion pack with four cells in series (4S) — 12.8V nominal, 14.6V at full charge. It is sized for high-capacity packs: 100Ah, 200Ah, 300Ah and above. It is not a lead-acid charger: the 2-stage CC/CV profile is built for lithium, and 12V AGM, GEL and flooded batteries need a different charging profile. Tell us your pack's capacity and we will confirm the right build.

Can it charge a completely flat battery?

Yes. The charger activates the BMS and starts charging even from 0V, so a pack that has been sitting discharged and is rejected by an ordinary charger can be recovered. Once the BMS is awake the charger runs its 2-stage CC/CV profile up to full charge.

What connector does it have, and what is in the box?

A 50A Anderson connector on the charger. 80A Anderson plugs and an M8 terminal adapter cable are supplied, so it bolts onto the M8 terminals of most 12V lithium deep-cycle packs. Other high-current terminations are available on request.

How fast will it charge my pack?

At a steady 50A the bulk stage puts 50 amp-hours into the pack every hour, so a 100Ah pack's bulk stage takes roughly two hours and the CV stage then tapers the current off. That is why this charger saves at least half the charging time of a standard charger.

Model Comparison
50A into LiFePO4 packs at 14.6V. Our 14.6V LiFePO4 range runs 50A here and 60A on the YZ950 — the 60A model with display is the step up when you want the reading on the unit itself.

14.6V 50A LiFePO4 Battery Charger (view 2)

14.6V 50A LiFePO4 Battery Charger (view 3)
