24V Mobility Scooter 29.4V 4A Battery Charger
Mobility scooters and wheelchairs running 24V (7S) lithium: 29.4V at 4A through a 3-pin XLR plug, the connector most of these chairs use. Digital voltmeter a...
| Input Voltage | 100-240V AC |
|---|---|
| Output | 29.4V 4A |
| Efficiency | >89% |
| Protection | OVP/OCP/SCP/OTP |

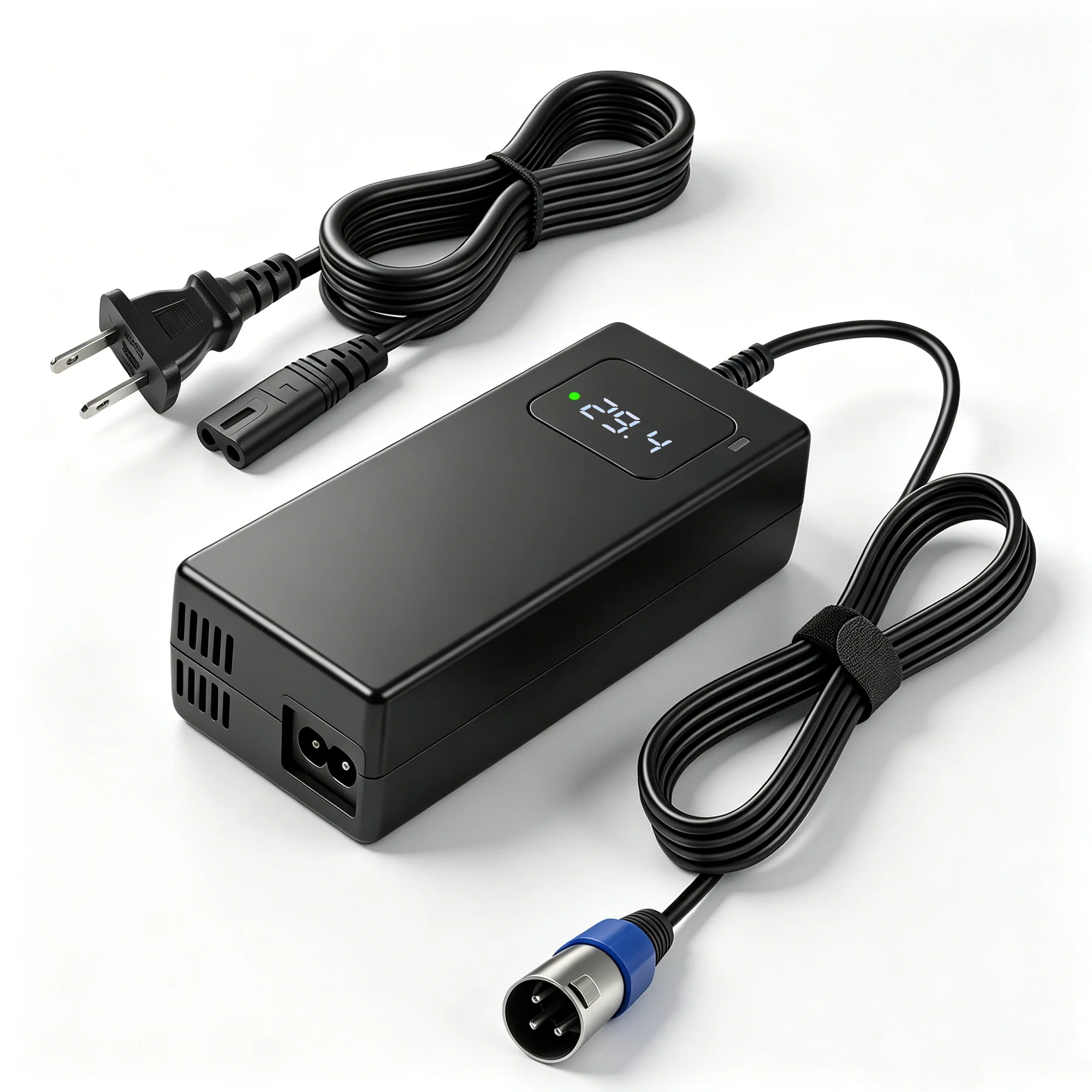

A mobility scooter battery charger built for 24V (7S) lithium-ion packs — 29.4V constant-voltage charging, 4A constant current, 3-pin XLR output, digital voltmeter and a built-in fan for continuous duty. The same 29.4V output also serves 24V hoverboards and other 7S packs. CE / RoHS / SAA certified, from our own 3,000 m² factory in Shenzhen.
Key specifications
Model / battery · YZ100 · 24V (7S) lithium-ion pack
Output · 29.4 V DC / 4 A (117.6 W) · CC/CV profile
Input · 100–240 V AC, 50/60 Hz · appliance inlet (detachable mains cord)
Efficiency · >88%
Display · Digital voltmeter — shows the pack voltage during charge
Protection · OVP · OCP · SCP · OTP · automatic cut-off at end of charge | red LED = charging, green = complete
Cooling / enclosure · Built-in high-speed fan + aluminium heat sink shell · fireproof housing · Class II · IP20 (indoor, not water-resistant)
Output connector · 3-pin XLR (standard for mobility scooters and wheelchairs) — other types below
Size / weight · approx. 135 × 56 × 46 mm · 0.5 kg
Operating ambient · up to 25 °C (rated maximum)
Certification · CE (LVD) · RoHS 2.0 · SAA — numbers below
MOQ / lead time / warranty · 1 unit · 10-15 working days · 1 year
Full technical data sheet — complete specification, certification references,
all connector and plug options, custom build scope, ordering terms. 2 pages, PDF.
Connector, plug and custom build options
Output connector · 3-pin XLR standard. Also DC 5.5×2.1 mm, DC 5.5×2.5 mm, GX16 / GX12, XT30 / XT60 / XT90, Anderson-style, alligator clips — or a connector to your drawing
Pinout · Built to your equipment's wiring — tell us whether the charger must present Pin 1 (positive) / Pin 2 (negative), or Pin 1 (positive) / Pin 3 (negative)
Input plug · US · EU · UK · AU
Output voltage · 3.7–96 V (1–23 series, or more on request). The CE attestation covers 12.0–58.8 VDC; builds outside that band are quoted separately and may need separate approval for your market.
Label · cable length · packaging · manual · Produced to your specification
Since 201115 years building chargers
3,000 m²own factory in Shenzhen
150,000+units produced every month
55+export markets served
Why this charger lasts
29.4V is the full-charge voltage of a 7-series lithium pack (7 × 4.2V). In CC mode the charger
pushes a steady 4A into the pack until it reaches 29.4V, then switches to CV mode and holds that
voltage while the current tapers off — then stops. That taper and cut-off are what stop the pack
being overcharged, which is the difference between a battery that lasts its rated life and one
that comes back as a warranty claim.
4A output — half the charging time
Most 24V mobility chargers on the market deliver 2A. Doubling the current roughly halves the
time a 24V / 25.2V pack spends on charge, which matters on a scooter that is in daily use.

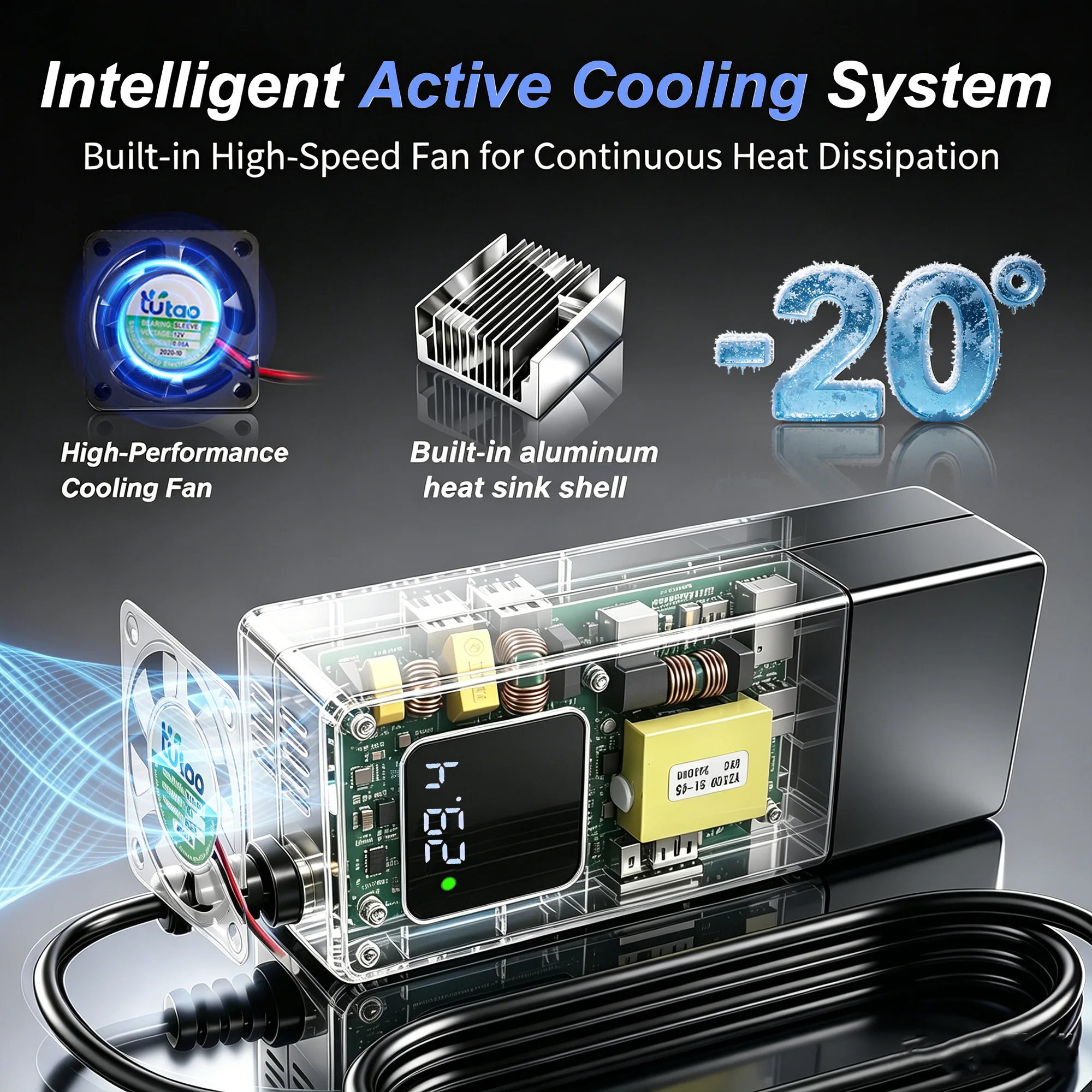

Built-in fan, aluminium shell
The fan moves air across the power stage and the shell itself is an aluminium heat sink. Heat
is the biggest killer of charger lifetime — especially at 4A continuous.

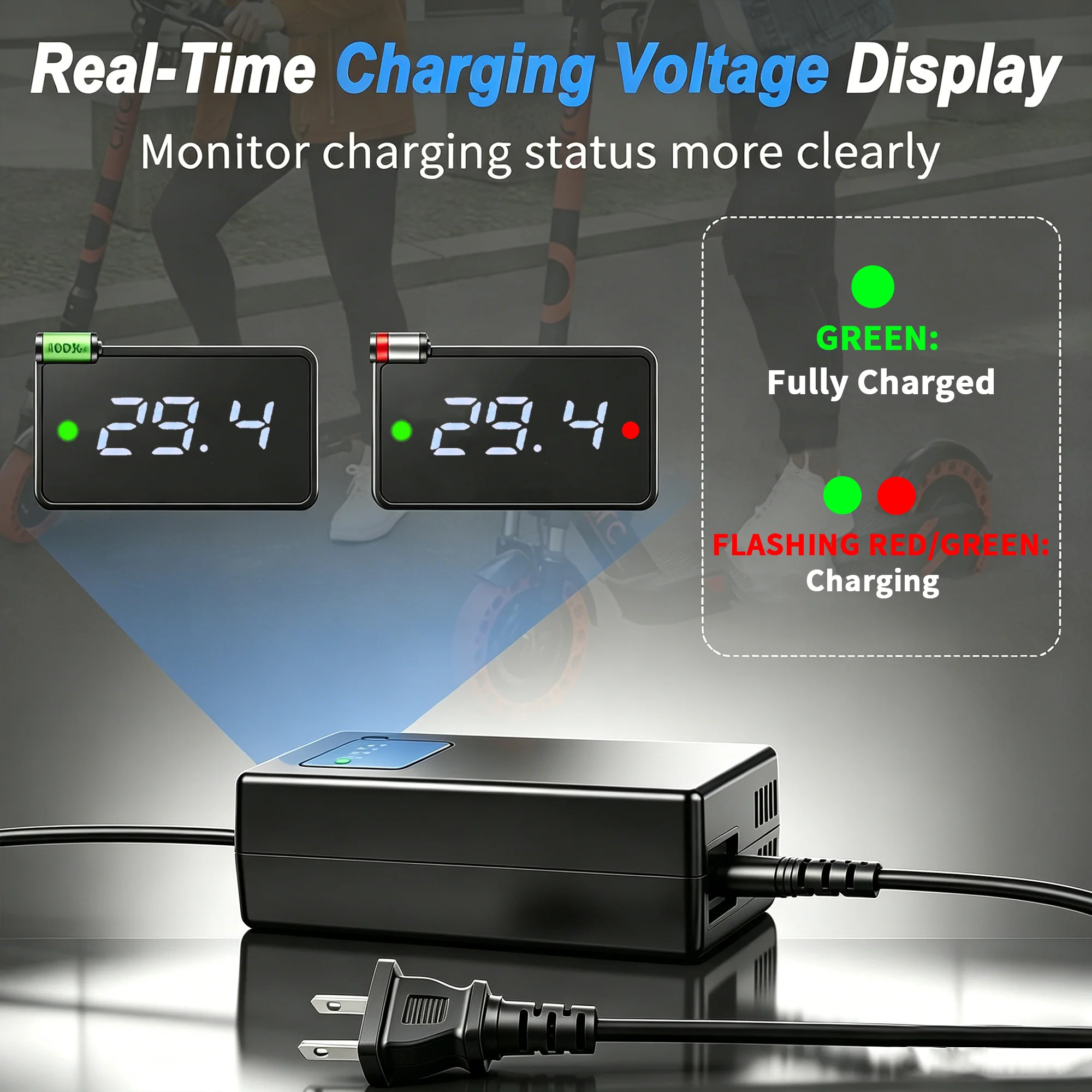

Digital display
A voltmeter on the case shows the pack voltage as it climbs, so the user can see the charge
state instead of guessing from a light.
Five protection layers
Over-voltage, over-current, short-circuit, over-temperature and overcharge cut-off. Charging
stops on a fault and the unit is safe to leave connected overnight.
How 29.4V relates to 24V, 25.2V and 25.6V packs
Certifications and how we build
CE — LVD 2014/35/EU · TÜV SÜD attestation N8A 134063 0002 Rev. 00 (test report 68.210.25.1077.01) · EN 60335-1:2012/A16:2023, EN 60335-2-29:2021/A11:2024, EN 62233:2008 · family rated 12.0–58.8 VDC / 0.1–7.5 A, Class II, IP20
RoHS 2.0 · Test report CRT250623R001 · Directive 2011/65/EU as amended by 2015/863/EU
SAA · Certificate GMA-512250-EA · model YZ02940200 · AS/NZS 60335.1:2020, AS/NZS 60335.2.29:2017 · valid to 15 Apr 2027

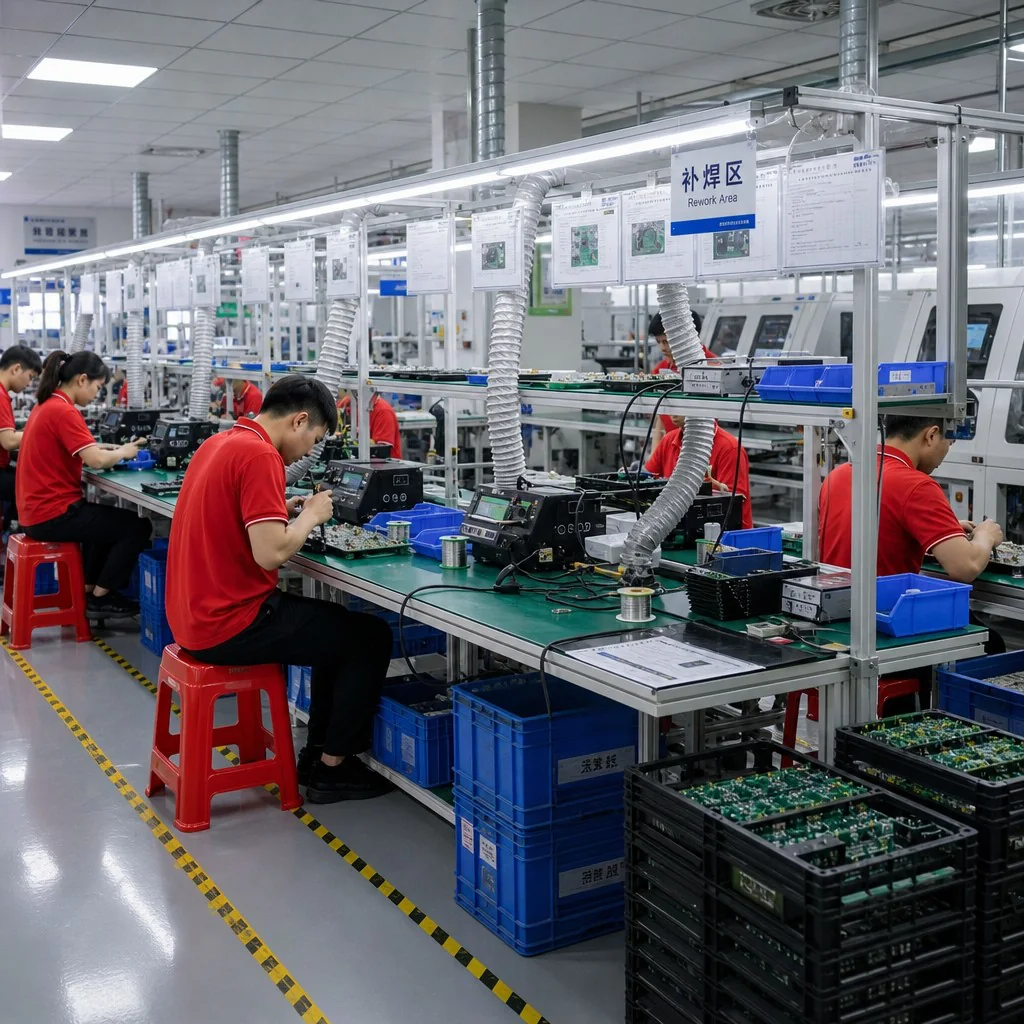

Own SMT lines, assembly zones, aging chambers and IQC / IPQC / OQC checkpoints sit under one roof;
every unit is aged before it is packed, and your order runs through three inspections before we
photograph it and dispatch. Certificate copies are available for your technical file.
Frequently asked questions
Are you a factory or a trading company?
We are a manufacturer, building chargers in Shenzhen since 2011. Our 3,000 m² facility has its own SMT lines, assembly zones, aging chambers and QC stations, with a monthly capacity of 150,000+ units. We welcome factory visits and third-party inspections.
What battery does this charger suit?
A 24V (7S) lithium-ion pack. 29.4V is the full-charge voltage of 7 series lithium cells at 4.2V each, so a 29.4V 4A charger is the correct match for a 24V, 25.2V or 25.6V lithium mobility scooter, wheelchair or power chair battery.
Will it fit my mobility scooter or wheelchair?
The charger is supplied with a 3-pin XLR output connector, the standard used on most 24V mobility scooters and power chairs. If your equipment uses a different connector or pinout, send us your equipment model or a photo of the socket — we build to your specification, including DC barrel, GX16, XT and Anderson-style connectors.
Can it charge a 24V lead-acid or LiFePO4 battery?
Not with this 29.4V build — the charge voltage differs by chemistry, and using the wrong output voltage is the most common reason a replacement charger fails or a battery is damaged. We build 24V lead-acid and 24V LiFePO4 versions on the same platform; tell us your battery type and we will quote the right output voltage.
Does it also work as a 29.4V hoverboard charger?
Yes. A 24V hoverboard uses the same 7S lithium pack, so the same 29.4V output charges it. The standard connector on this build is 3-pin XLR for mobility equipment; a DC 5.5 × 2.1 mm plug is also available for hoverboards and other equipment, so tell us which socket your board uses and we will match it.
