24V Mobility Scooter 29.4V 2A Battery Charger

The 24V setting of the YZ100: 29.4V at 2A for 7S lithium packs on mobility scooters and electric wheelchairs. CC/CV charging, 3-pin XLR.

Technical specifications
Input Voltage100-240V AC
Output29.4V 2A
Efficiency>88%
ProtectionOVP/OCP/SCP/OTP

Overview

The YZ100 in its 24V setting - 29.4V at 2A - for 24V (7S) lithium packs. This is the rate most 24V mobility chargers ship at: a small pack, charged between trips, usually overnight.

Which packs this charger suits

7S lithium-ion: 7 cells at 4.2V gives 29.4V, the pack sold as 24V (25.9V nominal).

A 24V lead-acid pack absorbs at 28.8-29.4V, close to this output, but lead-acid needs a taper this CC/CV unit does not run. An 8S LiFePO4 pack stops at 29.2V and takes a different model.

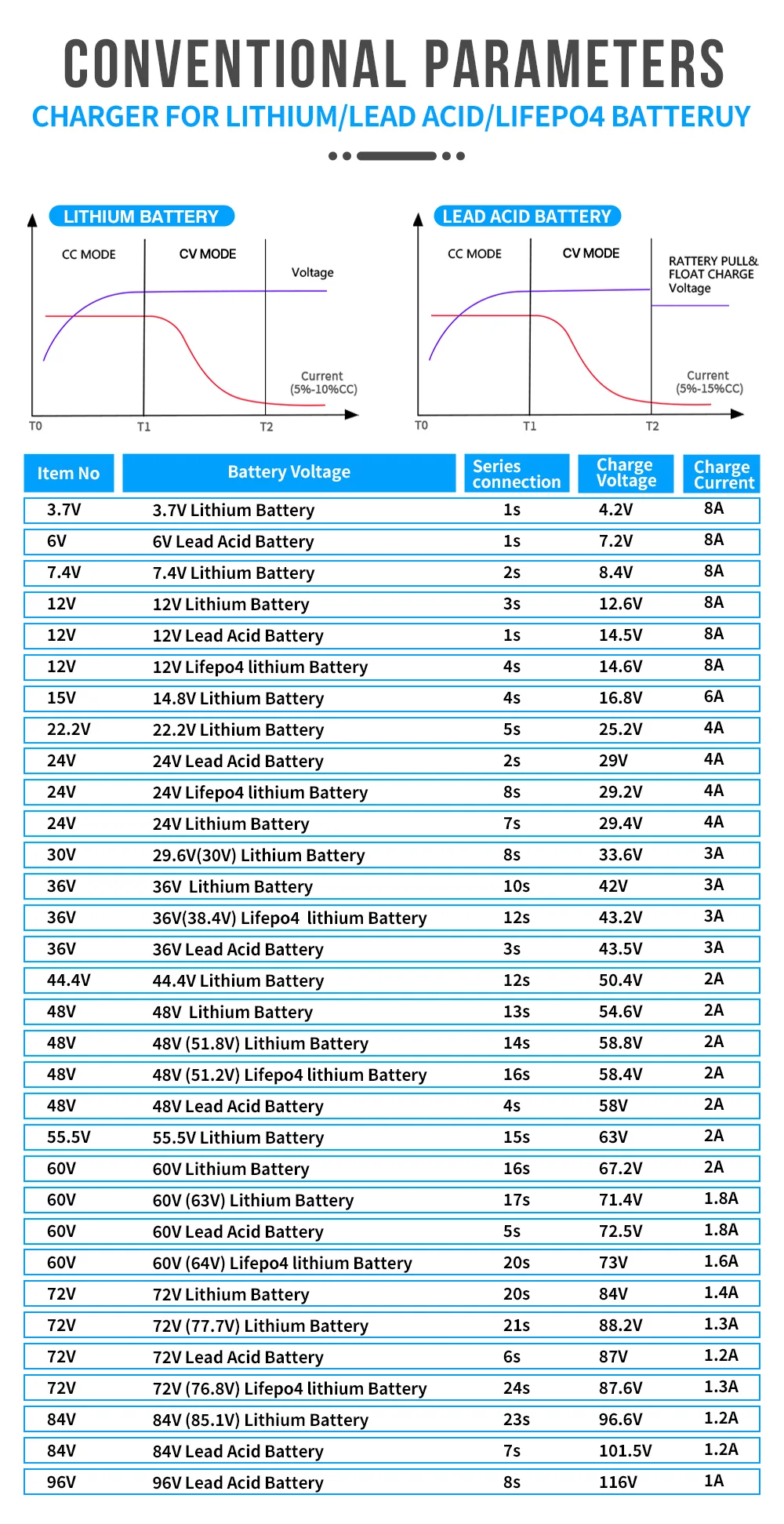

Specifications

24V Mobility Scooter 29.4V 2A Battery Charger - detail view 1

Model Comparison

The YZ100 in its 29.4V setting: 2A for 24V lithium mobility packs. Its 48V sibling runs 54.6V, and the same output at 4A is a separate model for shorter charge times.

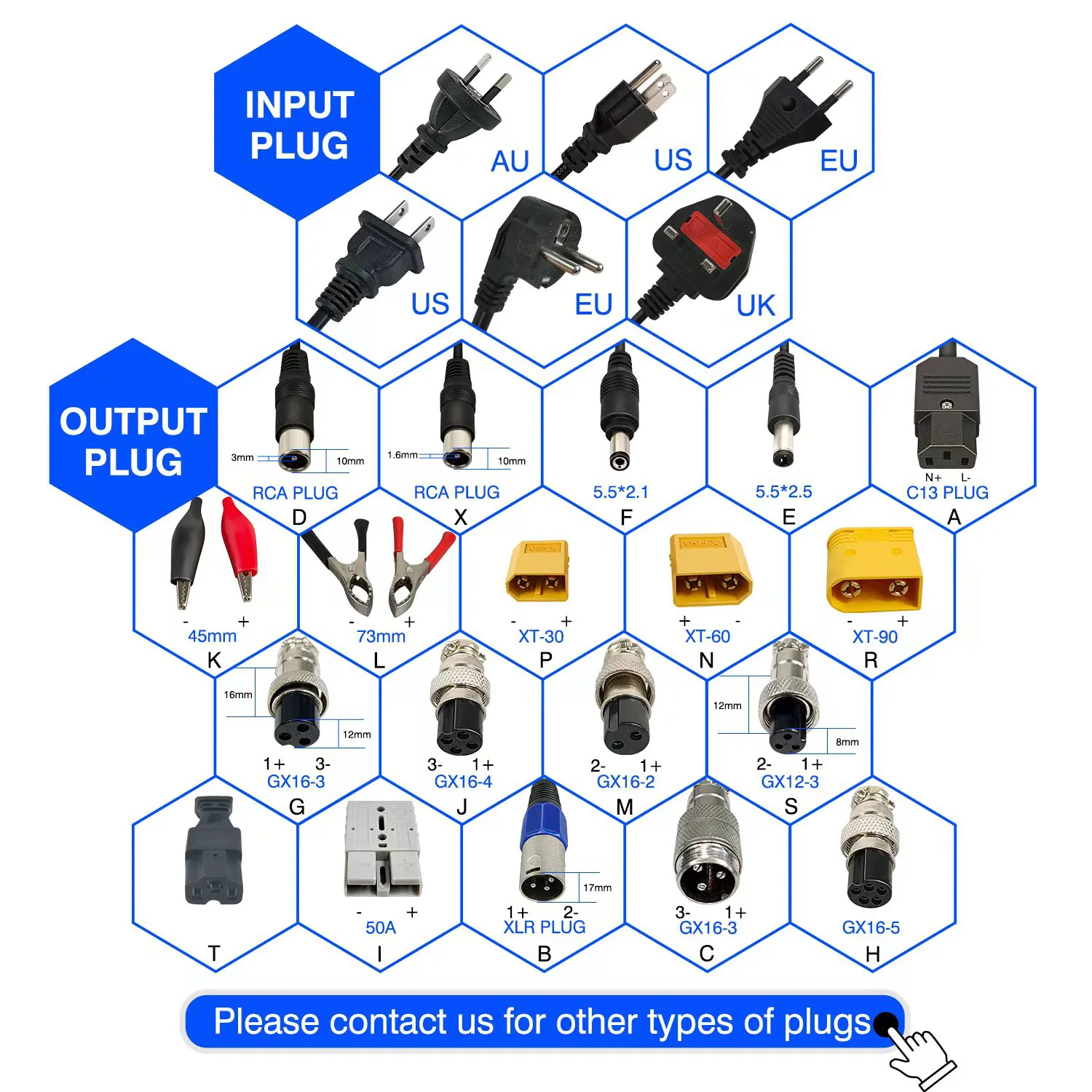

Connectors and plugs

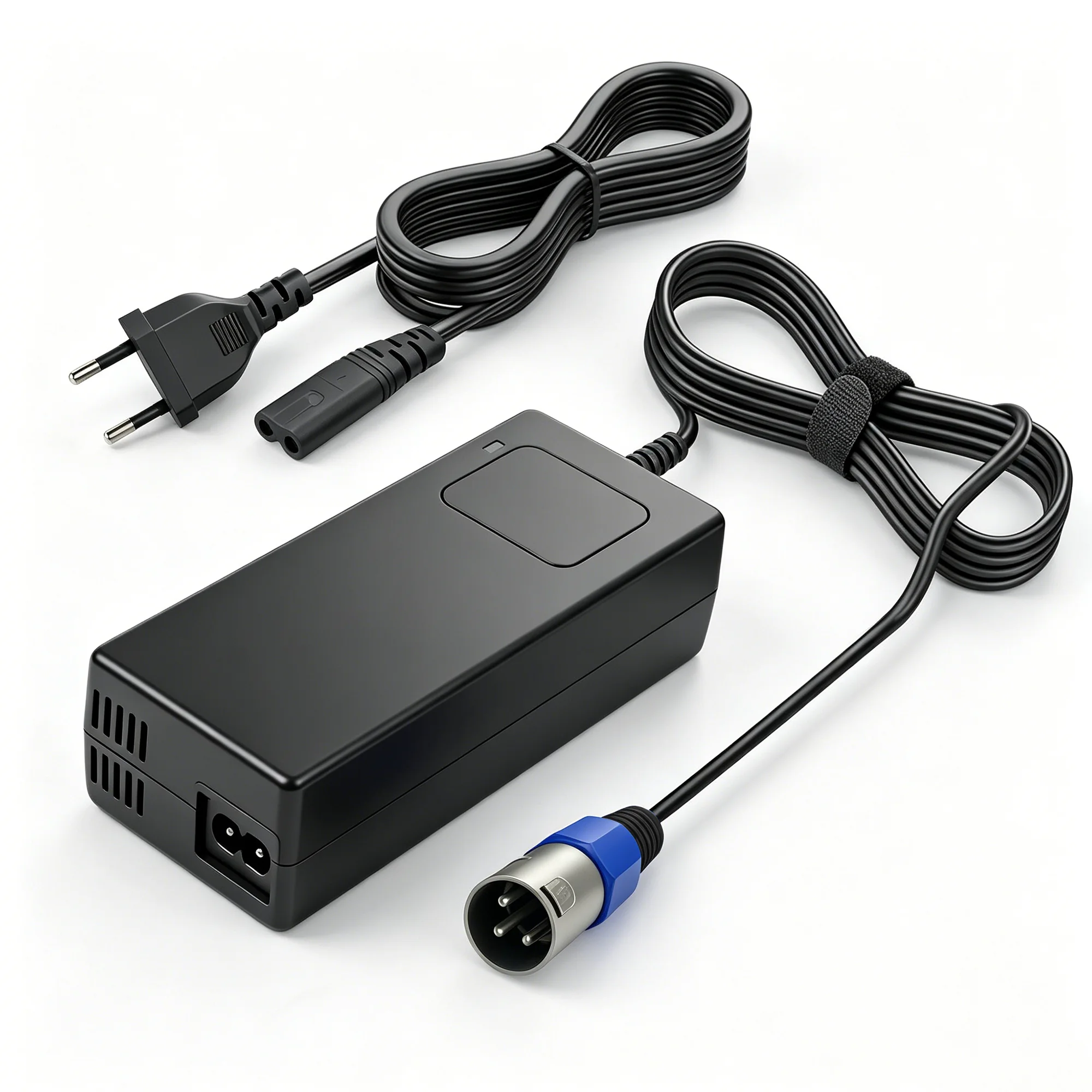

Output connector: 3-pin XLR, standard on mobility scooters and electric wheelchairs. Other pinouts are built to your equipment's drawing.

24V Mobility Scooter 29.4V 2A Battery Charger - detail view 224V Mobility Scooter 29.4V 2A Battery Charger - detail view 3

What 29.4 V means on a 24 V pack

Seven lithium-ion cells at 4.2 V each give 29.4 V at full charge - the pack sold as 24 V (25.9 V nominal). This is the CC/CV profile for 7S lithium-ion; the charger reaches 29.4 V and holds it while current tapers.

2 A is the standard mobility rate

2 A suits a mobility pack that is charged between trips rather than run flat in a shift. A 20 Ah pack is about ten hours at full current, a 40 Ah about twenty, each plus the taper - an overnight cycle either way. The rate does not need to be higher for this duty, and a lower one is easier on a pack that sits at high state of charge for hours.

The near-miss with lead-acid

A 24 V lead-acid pack absorbs at 28.8-29.4 V, which overlaps this output almost exactly, and that is where the mistake happens. The voltages look interchangeable; the profiles are not. Lead-acid needs absorption followed by a taper, lithium needs constant current into a hard stop at 29.4 V. Specifying a lithium profile for a lead-acid bank, or the reverse, shortens the battery's life even when the voltage matches.

Where it fits

24 V lithium packs on mobility scooters and electric wheelchairs, charged between trips. The 3-pin XLR connector is standard on this class of equipment. The same YZ100 platform covers 13S at 54.6 V, so a fleet running both 24 V and 48 V equipment can stay on one charger family.

Ratings

Input 100-240 V AC. Output 29.4 V at 2 A. Efficiency above 88%. Protection: over-voltage, over-current, short-circuit and over-temperature.

What to confirm before ordering

Chemistry and series count - 7S lithium-ion, not 8S LiFePO4 and not a 24 V lead-acid bank. Pack capacity in Ah, since charge time follows directly from 2 A. The connector on the pack - 3-pin XLR is standard, other pinouts built to drawing. The input plug for the destination market.

MOQ / lead time / warranty · 1 unit · 10-15 working days · 1 year

FAQ

Can it charge a 24 V lead-acid battery? No. The voltage is close but the profile is wrong - lead-acid needs a taper.
What about 8S LiFePO4? That pack finishes at 29.2 V and takes a different model.
Is 2 A enough for a 100 Ah pack? At 2 A a 100 Ah pack takes over two days from empty - the wrong charger for a pack that size. Mobility scooter and wheelchair packs are a fraction of that and reach full on an overnight charge.
